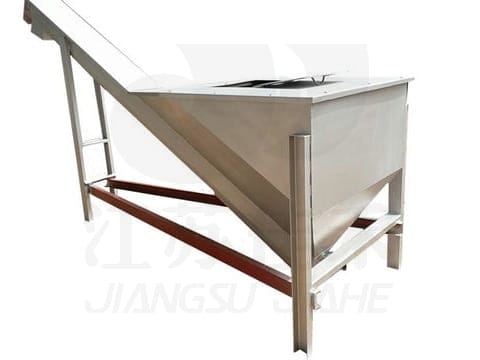

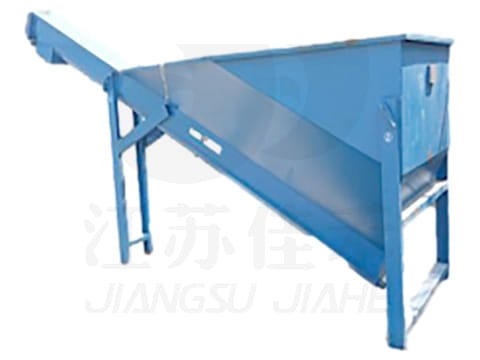

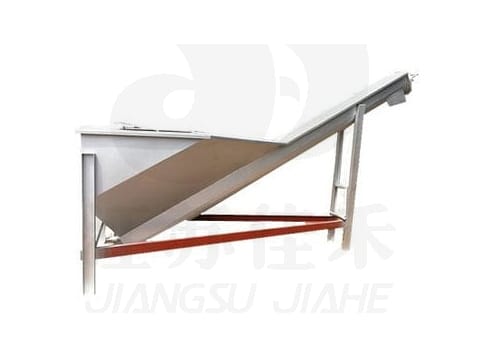

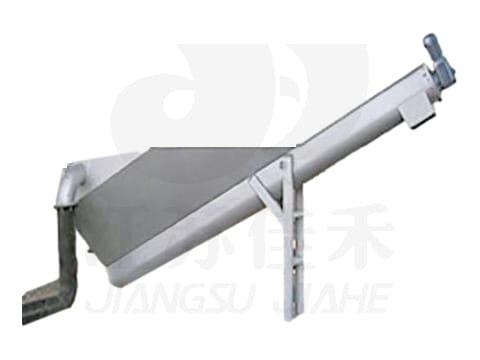

Grit Classifier System

Precision Separation for Optimal Wastewater Treatment

Jiahe Conveying's Grit Classifier System delivers superior inorganic solids separation through advanced mechanical and hydraulic processes. Our engineered solution achieves 98% capture efficiency for particles ≥200μm while maintaining <1% organic content in discharged grit.

System Highlights

• Dual separation technology: Spiral conveyance + controlled vortex

• Self-cleaning mechanism: Reduces maintenance frequency by 40%

• Adaptive control system: Automatically adjusts to flow variations

• Compact footprint: 30% smaller than conventional systems

Technical Specifications

Innovative Design Features

1. Intelligent Separation Process

• Multi-stage classification chamber

• Counter-flow washing (2-5 bar pressure)

• Adjustable weir gates for precise control

2. Durable Mechanical Components

• Submerged roller bearings (50,000h L10)

• Hard-faced spiral flights (HRC 58+)

• Quick-change wear parts (<30min replacement)

3. Smart Monitoring System

• Real-time TSS monitoring

• Torque adaptive control

• Predictive maintenance alerts

• Cloud-based performance tracking

Performance Data

Municipal WWTP Application Results:

• Grit capture: 98.2% @ 0.21mm

• Organic content: 0.8% in discharged grit

• Power consumption: 0.11kWh/m³

• Maintenance interval: 8,000 operating hours

Certifications & Compliance

• CE Marking (PED 2014/68/EU)

• ISO 9001:2015 Quality Management

• EN 1090 EXC3 Execution Class

• SIL 2 Safety Integrity Level

Custom Configuration Options

• Capacity: 10-600 m³/h

• Materials: 304SS, 316LSS, Duplex, Titanium

• Automation: Full IoT integration available

• Ancillaries: Grit washer, compactors, conveyors

• Specialty: Explosion-proof, Arctic, Tropicalized

Request project-specific engineering analysis today!
