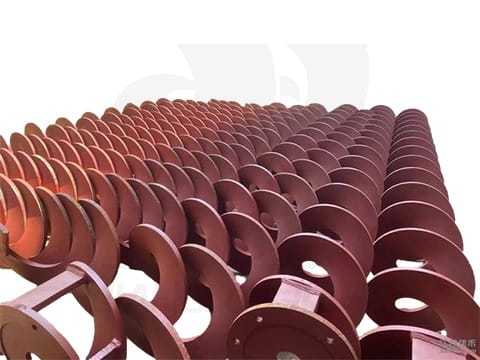

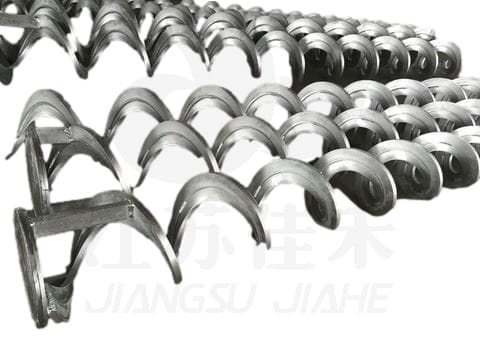

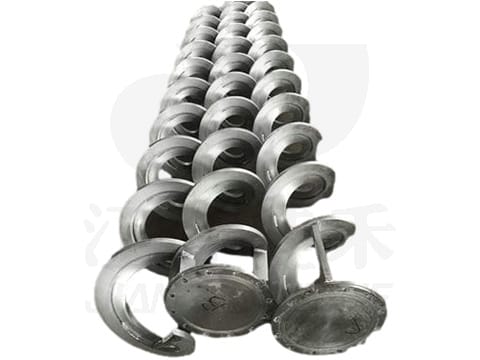

Shaftless Helical Screw Assembly

Product Overview

Jiahe Conveying's Shaftless Helical Screw Assembly is an innovative bulk material handling solution designed for challenging conveying applications. This advanced design eliminates the central shaft to provide superior flow characteristics and reduced maintenance when handling sticky, viscous or fibrous materials that tend to wrap around traditional screw conveyors.

Technical Specifications

Design Features

1. Shaftless Construction Advantages

• Unrestricted material flow without central obstruction

• Eliminates material wrapping issues

• Reduced clogging in sticky material applications

2. Reinforced Flight Design

• Thickened outer edge (up to 30mm)

• Integrated stiffening ribs

• Bolt-on wear plates for easy replacement

3. Specialized Configurations

• Variable pitch options

• Segmented designs for easy maintenance

• Custom flight geometries

Performance Benefits

• 30% higher capacity than shafted equivalents

• Reduced power consumption

• Lower maintenance costs

• Longer service life in abrasive applications

Industry Applications

Wastewater Treatment

• Primary/secondary sludge

• Screenings handling

• Grit removal

Food Processing

• Sticky dough conveying

• Fruit/vegetable waste

• Food byproduct handling

Industrial Materials

• Paper/pulp waste

• Textile fibers

• Plastic recycling

Quality Assurance

• Material certification (EN 10204 3.1)

• Dimensional inspection reports

• Surface treatment verification

• Load testing documentation

Customization Options

• Corrosion-resistant coatings

• Explosion-proof versions

• Special flight profiles

• Wear monitoring systems

• Custom diameters/lengths

Contact our engineering team for shaftless conveying solutions!
