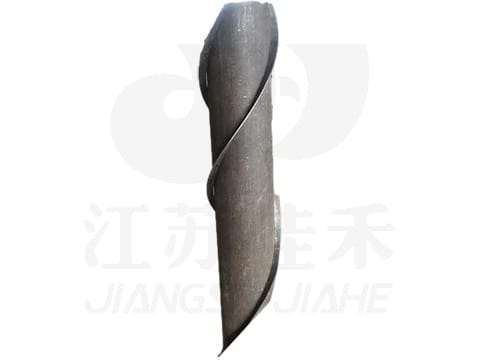

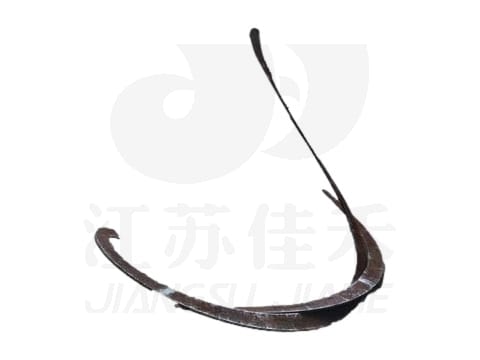

Bulk Material Conveying Ribbon Flight

Product Overview

Jiahe Conveying's Bulk Material Conveying Ribbon Flight is a professional-grade component specifically engineered for industrial conveying systems handling powders, granules, and viscous materials. As a core product of Jiahe Conveying Equipment Technology Co., Ltd, our ribbon flights are designed to integrate seamlessly with various screw conveyor configurations.

Technical Specifications

Design Features

1. Open Helix Structure

• Prevents material compaction and bridging

• Maintains product integrity during conveying

• Allows for simultaneous mixing and transport

2. Precision Clearance Control

• Standard 5-20mm clearance between flight and trough

• Custom clearances available for specific applications

• Optimized for minimal material residue

3. Material Options

• Carbon Steel: Standard Q235B/Q345B for general applications

• Stainless Steel: 304/316L for corrosive environments

• Wear-Resistant: NM360/NM400 for abrasive materials

Performance Characteristics

• Conveying Capacity: 2-100 m³/h (varies by configuration)

• Max Operating Temperature: 400°C (material dependent)

• Surface Finishes: Mill finish, polished, or coated options

• Connection Methods: Welded or bolted assembly

Industry Applications

• Food Processing: Flour, sugar, powdered ingredients

• Chemical Industry: Plastic pellets, detergents, fertilizers

• Building Materials: Cement, fly ash, dry mortar

• Pharmaceutical: Powdered ingredients, excipients

Quality Assurance

• Material certification (EN 10204 3.1/3.2)

• Dimensional inspection reports

• Surface treatment verification

• Load testing documentation

Customization Services

• Variable pitch designs

• Special material requirements

• Surface treatment options

• Connection method specifications

For detailed technical drawings and application engineering support, please contact our technical department.
