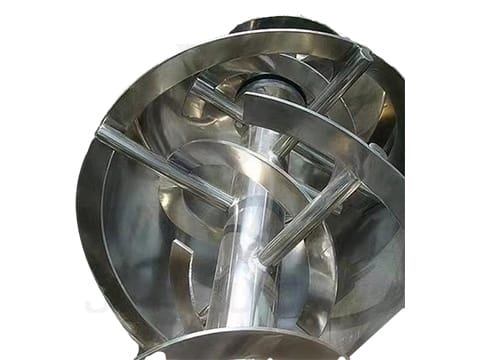

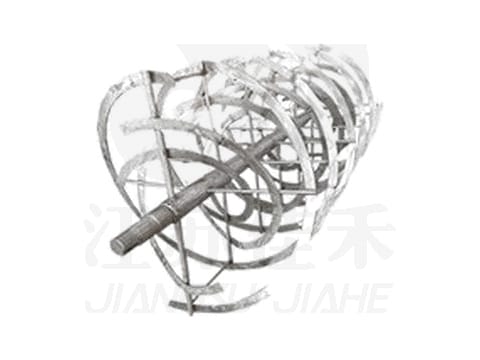

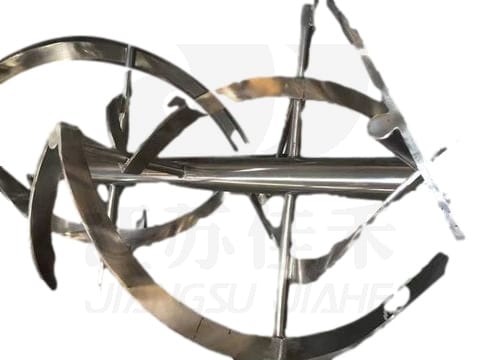

Mixing Ribbon Flight for Industrial Blending Applications

Product Overview

Jiahe Conveying's Mixing Ribbon Flight is a specialized component designed for high-efficiency blending and conveying operations in industrial mixing equipment. Engineered for optimal material movement and homogeneous mixing, our ribbon flights are integral to achieving consistent product quality in various processing applications.

Technical Specifications

Design Features

1. Advanced Mixing Geometry

• Specially engineered helix angles (30°-60°)

• Optimized ribbon width-to-pitch ratio

• Radial and axial flow optimization

2. Material-Specific Designs

• Low-shear configurations for fragile materials

• High-intensity designs for viscous products

• Abrasion-resistant profiles for harsh applications

3. Precision Engineering

• Tight tolerances (±1mm on critical dimensions)

• Balanced construction for smooth operation

• Custom weld preparations for secure attachment

Performance Characteristics

• Mixing Efficiency: 20-50% improvement over standard designs

• Capacity Range: 5-150 m³/h (application dependent)

• Surface Finishes: Ra 0.8-3.2μm (polish grades available)

• Operational Speed: 15-60 RPM (optimal range)

Industry Applications

• Food & Beverage: Powder blends, dough mixing, ingredient incorporation

• Chemical Processing: Compound mixing, reaction preparation

• Pharmaceutical: Powder blending, granulation processes

• Building Materials: Dry mortar mixing, adhesive formulations

Quality Assurance

• Material traceability documentation

• Dimensional verification reports

• Surface finish certification

• Dynamic balancing services (upon request)

Customization Options

• Variable pitch configurations

• Wear-resistant edge treatments

• Sanitary design adaptations

• Specialized surface coatings

For application-specific engineering solutions and performance optimization, consult our technical team.
