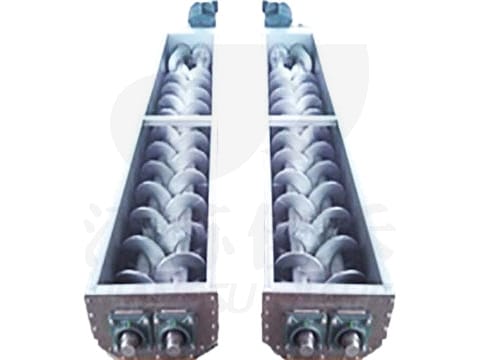

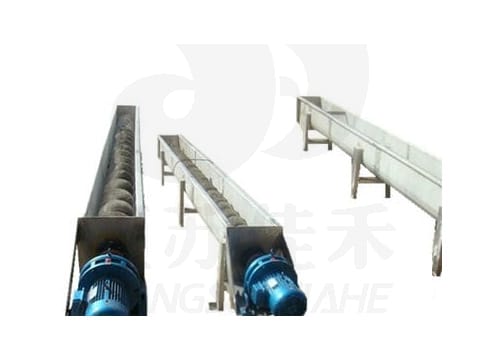

Shafted Screw Conveyor System

Engineered for Precision Bulk Material Handling

Jiahe Conveying's Shafted Screw Conveyor System represents the gold standard in reliable bulk material transportation. Our robust shafted design delivers superior torque transmission and precise material control for demanding industrial applications where consistent throughput matters.

Core Advantages

• High-torque capacity up to 120kNm

• Precision-guided material flow

• Modular designs for easy maintenance

• Energy-efficient operation

• Proven in 1000+ installations worldwide

Technical Specifications

Advanced Design Features

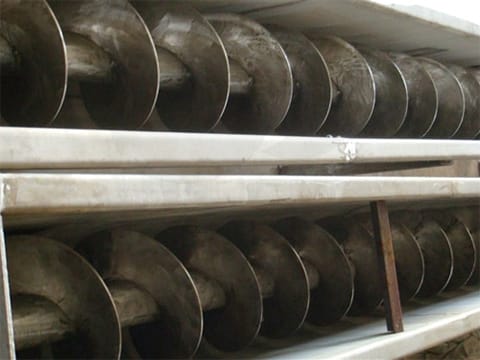

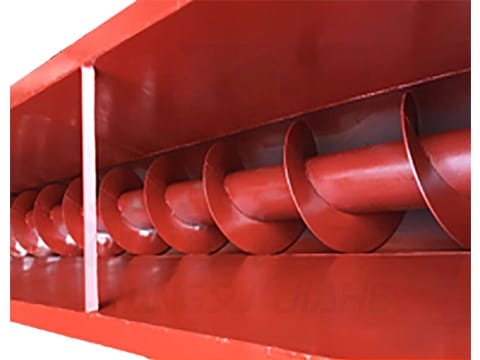

1. Precision Engineered Screw Assembly

• Helical flighting with optimized pitch

• Balanced rotation (G6.3 standard)

• Wear-resistant edges (HRC 55+ available)

2. Heavy-Duty Shaft System

• Solid or tubular construction

• Keyed, splined or flanged connections

• Intermediate bearings for long spans

3. Smart Conveying Technology

• Load monitoring points

• Wear detection systems

• Automated lubrication ports

Industry-Specific Configurations

Cement & Minerals

• Clinker-cooling screws with Hardox flights

• Mine-duty reinforced designs

• High-temperature configurations

Food & Pharma

• Sanitary 316L construction

• CIP/SIP capable

• Hygienic quick-disconnect

Chemical Processing

• Explosion-proof models

• Corrosion-resistant alloys

• Containment designs

Performance Data

Typical Operational Parameters:

• Speed Range: 10-120 RPM

• Inclination Capacity: Up to 25°

• Material Density: Up to 3.2 t/m³

• Temperature Range: -40°C to 400°C

Efficiency Metrics:

• 92-96% volumetric efficiency

• 15-30% energy savings vs competitors

• <0.5% material degradation

Custom Engineering Services

• Material Characteristic Analysis

• Flow Dynamics Simulation

• Structural FEA Modeling

• Prototype Testing

• Installation Optimization

Why Choose Our Shafted Conveyors?

✔ 25+ years of screw conveyor expertise
✔ Application-engineered solutions
✔ Global project experience
✔ Lifecycle support from design through maintenance

Contact our conveying engineers for a system analysis!
